Industrial 8-Ch ESP32-S3 WiFi Relay Module, Onboard RS485, Digital Input, Relay, Ethernet Port and Multiple Isolation Protection Circuits, Supports RS485 and Bluetooth/WIFi Remote Control

Description:

  • Industrial 8-Channel ESP32-S3 WiFi Relay Module, based on ESP32-S3 microcontroller, built-in 32-bit LX7 dual-core processor, up to 240MHz, integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication
  • Industrial 8-Ch WiFi Network Relay Module, onboard digital input, RS485, and ethernet port interfaces. Built-in multiple isolation protection circuits such as power isolation and optocoupler isolation, more safe, stable and reliable
  • Supports RS485 and Bluetooth / WIFi Remote Control, onboard 8-ch relays and 8-ch digital inputs, contact rating of the onboard relay up to 10A 250V AC / 30V DC, directly controlling 220VAC home appliances, or devices below 30V DC
  • Digital Input, supports passive (dry contact) and active (wet contact) digital input, with bi-directional optocoupler isolation
  • Supports Arduino IDE, comprehensive SDK, online development resources, tutorials, and technical support are provided, please feel free to contact us if you need
  • Industrial 8-Channel ESP32-S3 WiFi Relay Module:
    --Based on ESP32-S3 microcontroller with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
    --Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance
    --High quality relay, contact rating: ≤10A 250V AC / 30V DC
    --Supports passive and active digital input, with bi-directional optocoupler isolation. The relay supports digital input linkage control
    --Onboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensors
    --Onboard pin header, allowing access to other devices
    --Onboard USB Type-C port for power supply, firmware downloading and debugging
    --Onboard power supply screw terminal, supports 7~36V wide voltage input, suitable for industrial applications
    --Onboard RTC chip, supports scheduled tasks
    --Onboard W5500 Ethernet chip for extending 10/100Mbps network port through SPI interface
    --Onboard optocoupler isolation to prevent interference from external high-voltage circuit connected to the relay
    --Onboard digital isolation to prevent interference from external signal
    --Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
    --Onboard TF card slot for external TF card storage of images and files
    --Built-in buzzer, RGB LED, power supply and RS485 TX/RX indicators for monitoring the operating status of the devices
    --Rail-mounted ABS case, easy to install, safe to use

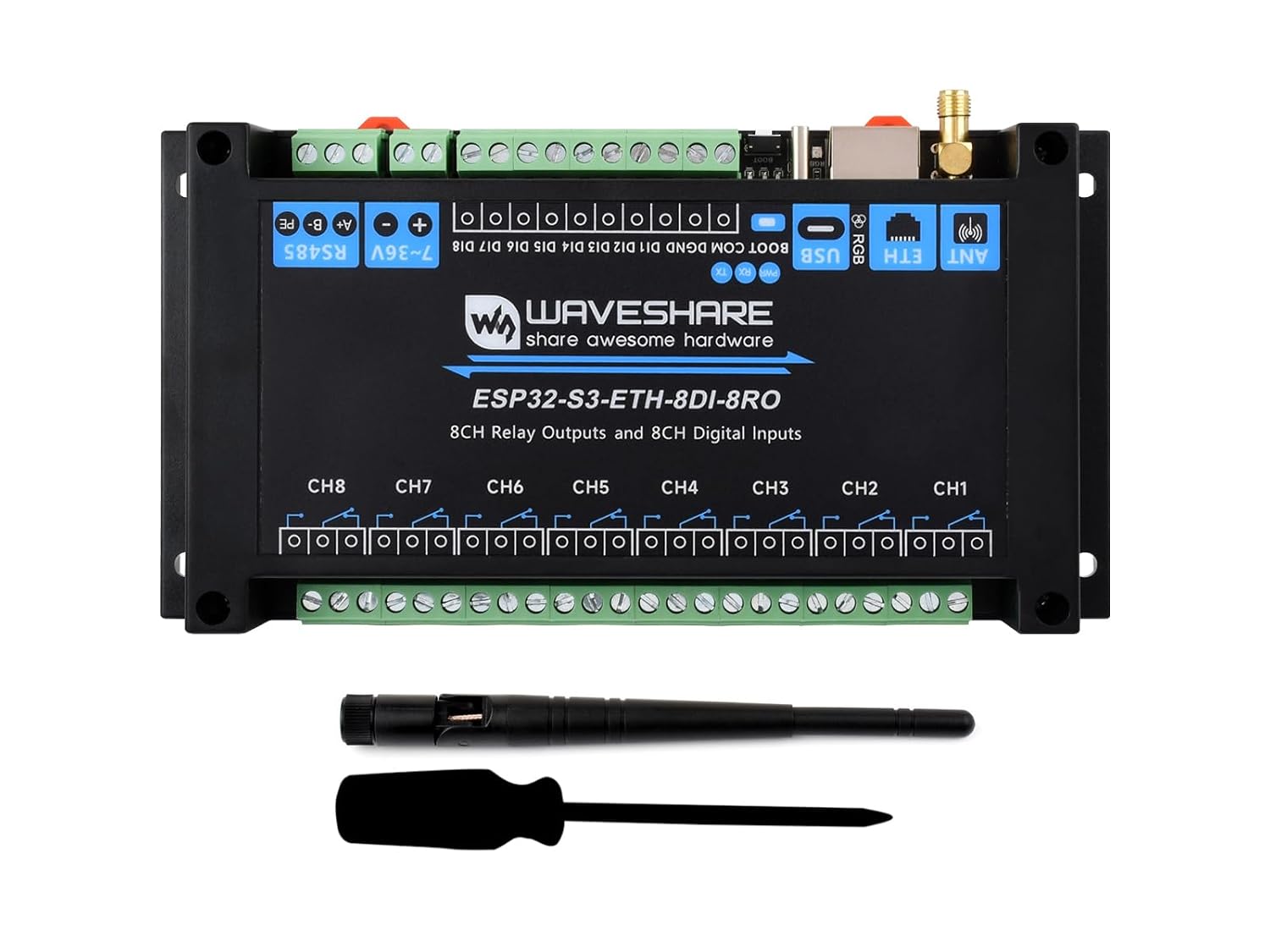

    Package Content
    ESP32-S3-ETH-8DI-8RO × 1
    2.4G 4DB SMA antenna × 1
    Screwdriver × 1

    Development Resources
    https://www.waveshare.com/wiki/ESP32-S3-ETH-8DI-8RO

    Details:

    Connector typeClamp and pin connector
    Contact materialCopper
    Contact typeNormally Open
    Current rating10 Amps
    Mounting typeDIN Rail Mount
